The Symbio Incline Elliptical is powered by a biomechanically advanced ellipse motion and incline adjustments that combine to deliver the most natural movement and specific muscle group targeting. Compelling, on-demand content further enhances the home workout experience. The elliptical has never felt more natural.
Life Fitness
Symbio Incline Elliptical™ Home Edition
MONTHLY
from
—
/monthly
ONE-TIME
from
Monthly payments available with . See if you qualify.
Made in USA using Global Materials
Color:CharcoalCharcoal
In-home delivery
- Placement in the room of your choice
- Professional assembly and removal of packaging
In-home delivery
This item will be delivered and installed within 5-7 weeks
- Placement in the room of your choice
- Professional assembly and removal of packaging
Step-up Height: 10.7 inches
Stride Length: 22" inches
Resistance Level: 25
Key Feature: Muscle Group Targeting
Stride Length: 22" inches
Resistance Level: 25
Key Feature: Muscle Group Targeting
| PERFORMANCE | |
| Drive / Resistance System | Generator |
| Resistance Levels | 26 |
| Incline | Adjustable — 15 incline levels |
| Interactive Muscle Map | Yes — tap a muscle group on the console to auto-set the optimal incline |
| Stride Length | 22 in. / 56 cm, naturally extending up to 25 in. / 63.5 cm on incline |
| DESIGN & ERGONOMICS | |
| Frame Color | Matte Charcoal; additional frame colors available made-to-order |
| Certified Use | Home — EN ISO 20957 Class HA |
| Handlebars | Moving multi-grip handles with thumb-switch controls plus stationary bull-horn handles |
| Activity Zone | Integrated Activity Zone control panel with lighted keypads |
| Pedals | Oversized pedals |

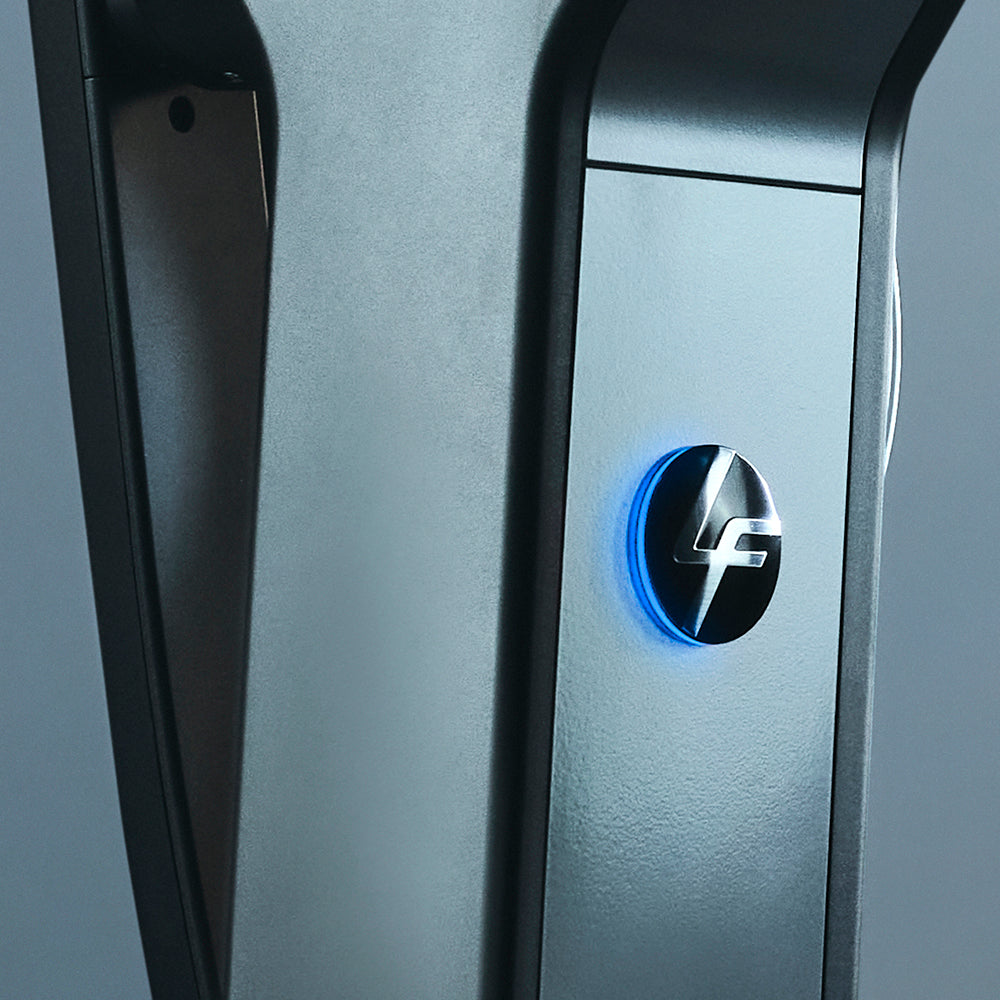

| Smart Lighting | Yes — handlebar and Activity Zone keypads, crank ring, LF logo and monocolumn emblem; 16 colors, 3 brightness levels |
| DIMENSIONS & WEIGHT | |
| Maximum User Weight | 400 lb / 181 kg |
| Length | 81.4 in. / 206.8 cm |
| Width | 37.5 in. / 95.3 cm |
| Height | 68.2 in. / 173.2 cm |
| Unit Weight | 670 lb / 304 kg (with console) |
| POWER REQUIREMENTS | |
| Power Requirements | 120 V / 15 A outlet (North America); 230 V / 12 A (international); 50/60 Hz |
| Energy-Saving Standby | Yes — ErP low-power standby (configurable in Manager settings) |
| HEART RATE MONITORING | |
| Heart Rate Monitoring | Lifepulse digital contact (grip) sensors — 8 sensor points on moving and stationary handles — plus Polar-compatible telemetry; Bluetooth and ANT+ straps supported; chest strap included |
| INCLUDED ACCESSORIES & STORAGE | |

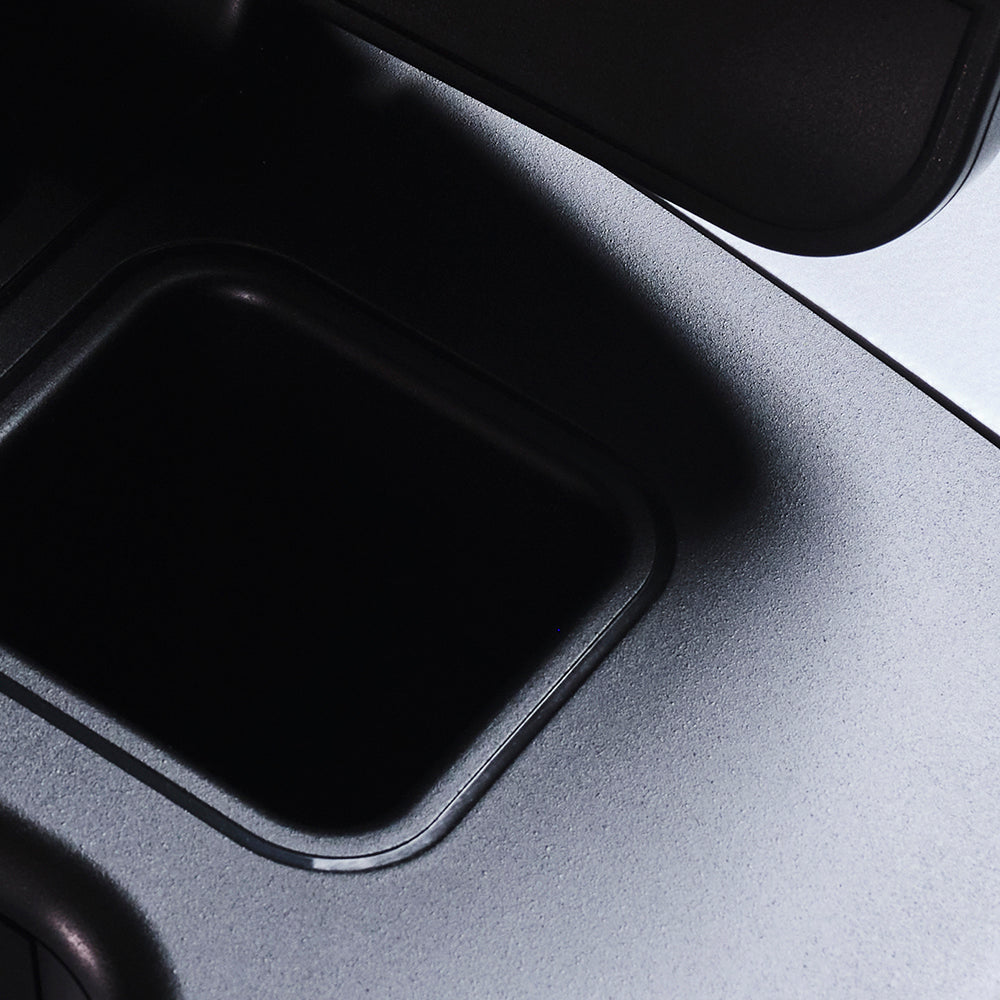

| Cup Holders | 2 |

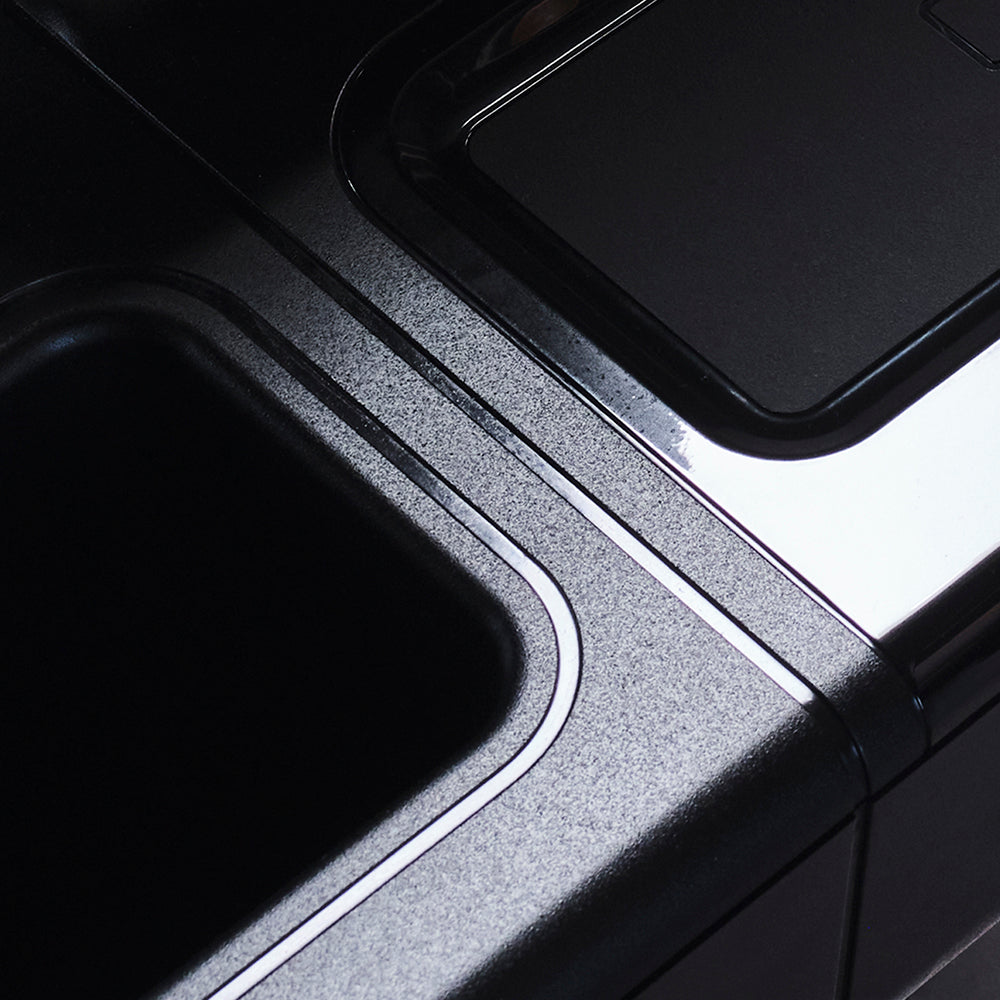

| Accessory Tray | Yes — with integrated Qi wireless charger |

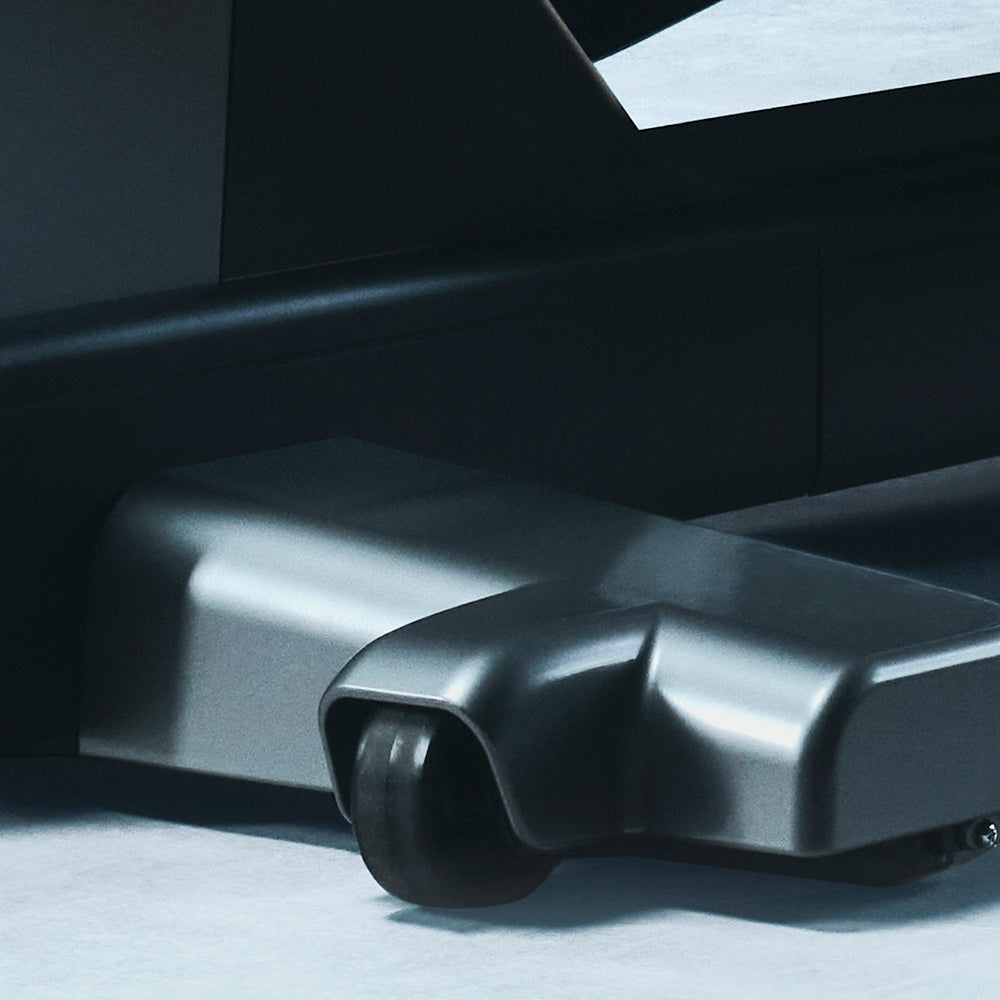

| Mobility | Retractable mobility wheel plus transport wheels |
| Leg Levelers | Yes — two, rear |
| A/V & Network Connections | Ethernet (CAT5e), HDMI, coaxial and IR inputs |
| SYMBIO CONSOLE | |

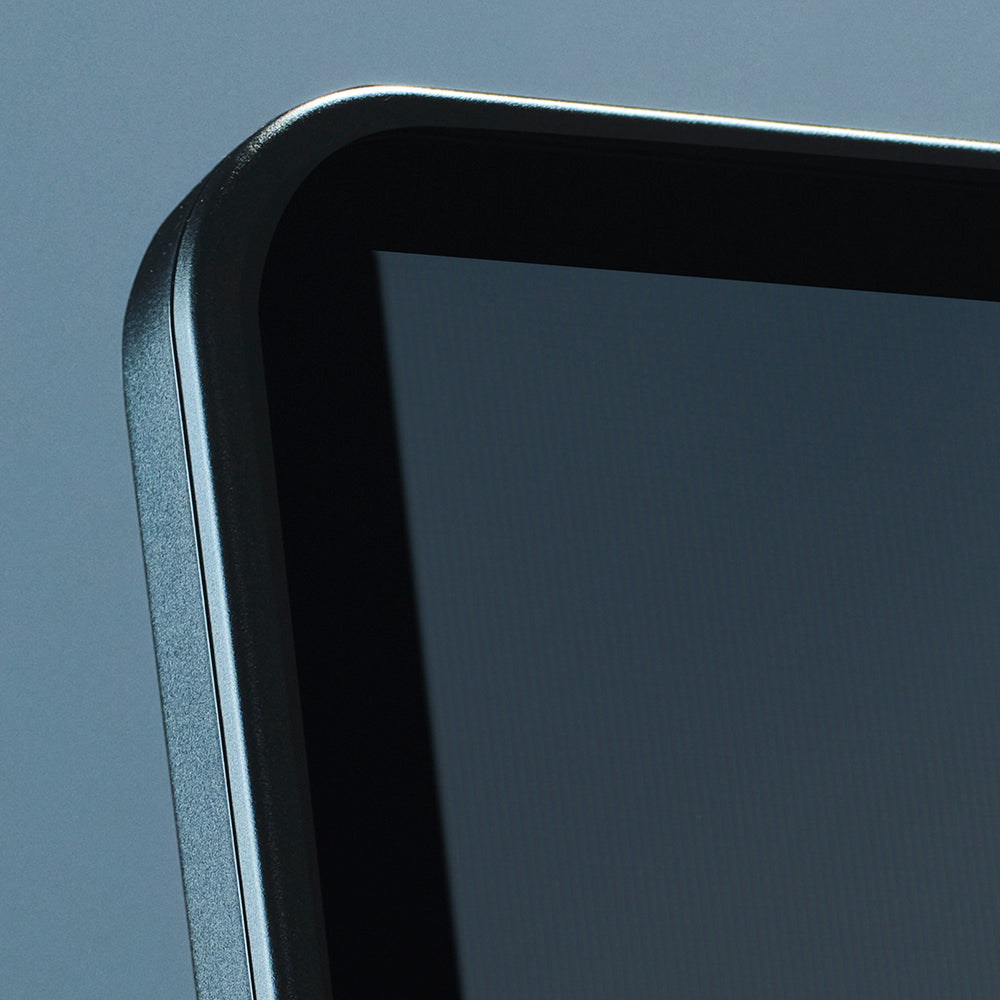

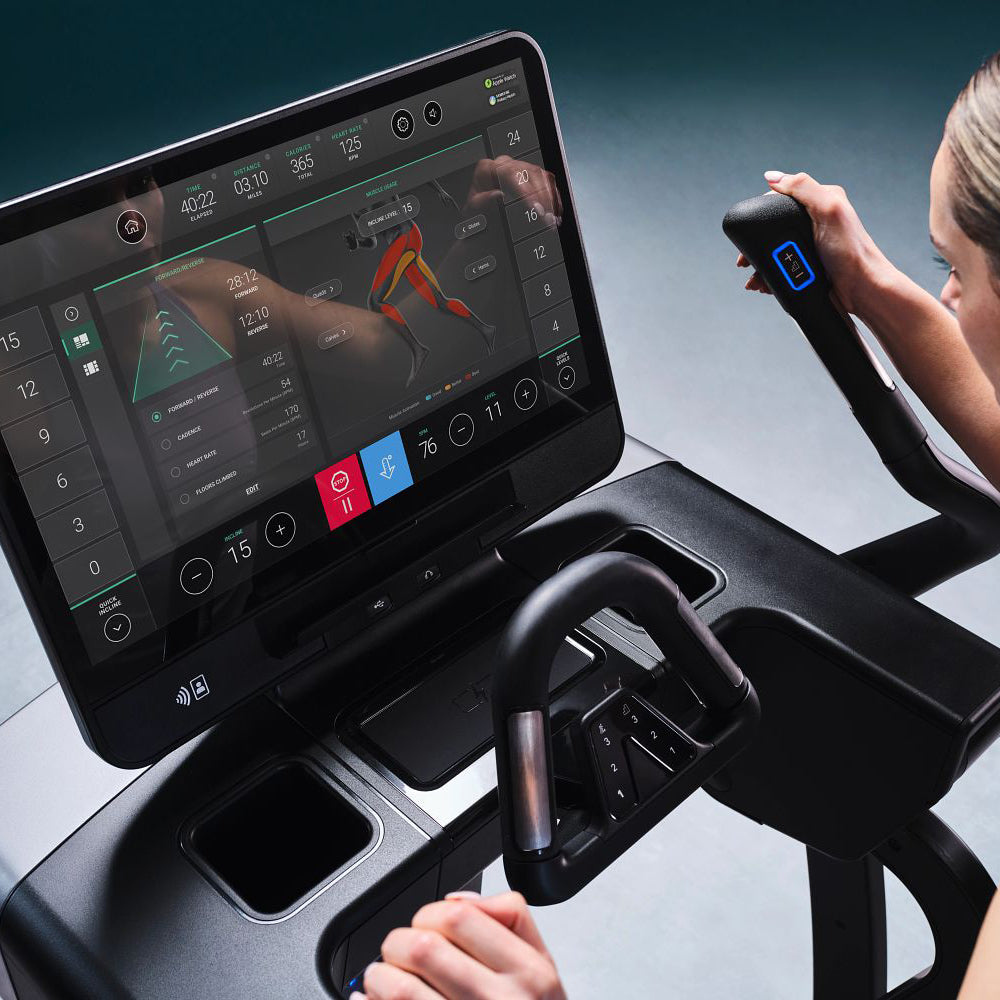

| Display | 24 in. 1080p HD AIT (Advanced In-Cell Touch) touchscreen |
| Touchscreen | Yes |
| Console Dimensions (W × H × D) | 22.76 × 16.4 × 3.4 in. / 57.8 × 41.6 × 8.6 cm; 24 lb / 10.9 kg |
| Workout Programs | Hill, Interval, Power, Heart Rate Training, and Goal workouts |
| Fitness Tests | Yes — Life Fitness Fit Test plus government/military protocols |
| Interactive Terrain Courses | Yes — 100+ streaming Interactive Terrains |
| On-Demand Classes | Yes — Life Fitness On Demand+ (complimentary; over 500 classes and courses) |
| Entertainment Apps | Yes — streaming apps including Netflix and Spotify (available apps vary by region) |
| Live Broadcast TV | Yes |
| Life Fitness Connect App | Yes |
| Wi-Fi | Yes |
| Wireless Accessories | Bluetooth 5.0 and ANT+ heart rate straps; Bluetooth 5.0 audio (headphones / speakers) |
| Smartwatch Connectivity | Apple Watch (Apple GymKit) and Samsung Galaxy Watch |
| USB Port | Yes — device charging and software updates |
| Audio Jack | Yes — 3.5 mm (wired headphones) |
| Wireless Phone Charging | Yes — Qi fast charging, up to 10 W output |
| Frame | Lifetime |
| Motor / Drive | Lifetime |
| Mechanical Parts | 10 Years |
| Electrical Parts | 10 Years |
| Console | 3 Years |
| Labor | 3 Years |
| Cosmetic Items | 6 Months |
Assembly Instructions
| Ceiling Height | ||
|---|---|---|
| Max User Height at 0% Incline |
Max User Height at 15% Incline |
|
| 7'0" (84") | 5'7.5" (67.5") | 5'5" (65") |
| 7'2" (86") | 5'9.5" (69.5") | 5'7" (67") |
| 7'4" (88") | 5'11.5" (71.5") | 5'9" (69") |
| 7'6" (90") | 6'1.5" (73.5") | 5'11" (71") |
| 7'8" (92") | 6'3.5" (75.5") | 6'1" (73") |
| 7'10" (94") | 6'5.5" (77.5") | 6'3" (75") |
| 8'0" (96") | 6'7.5" (79.5") | 6'5" (77") |
Freq Bought Together
Shogun Metafield

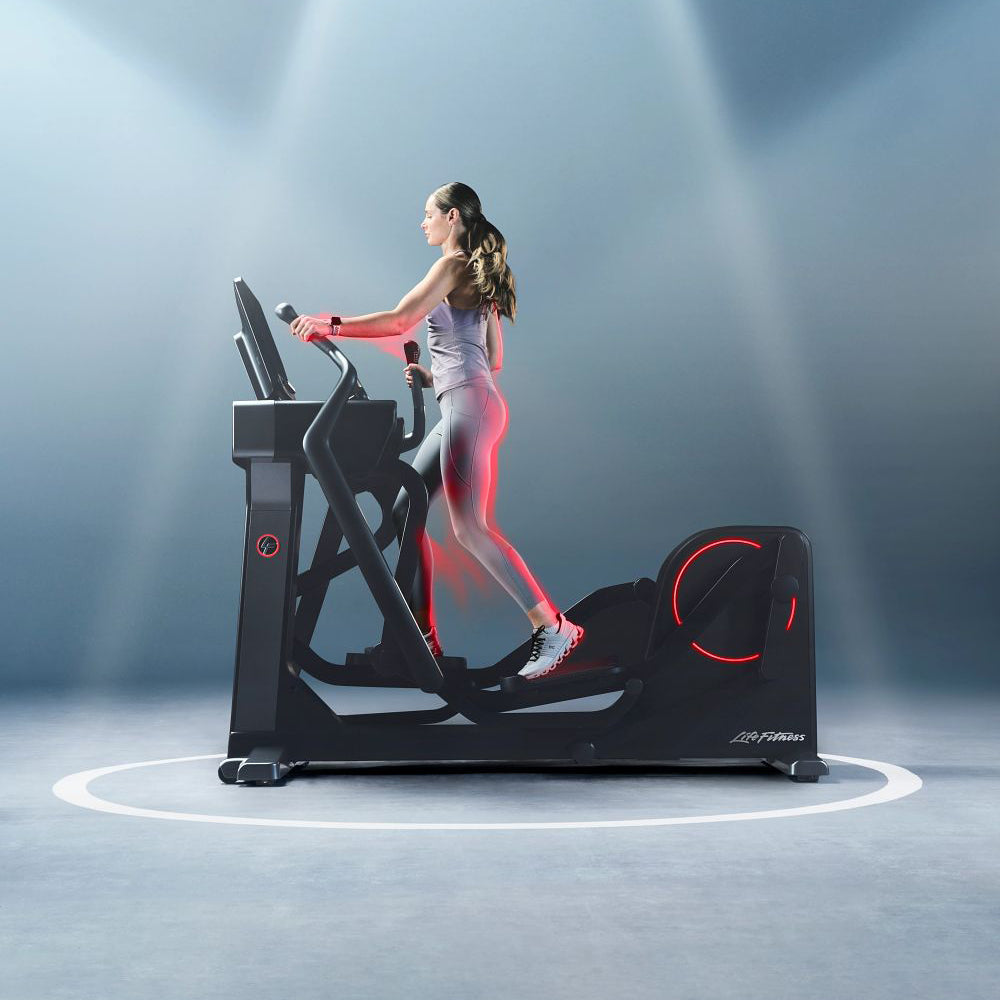

ELLIPTICAL TRAINING, REIMAGINED.
The Symbio Incline Elliptical is the most biomechanically advanced elliptical available. Our patented incline ellipse mimics the body's natural running arc, taking performance and comfort to a new level. The culmination of decades of groundbreaking biomechanical research, training feels natural, smooth and empowering through 16 incline and 26 resistance levels.
INTERACTIVE MUSCLE MAP
Intelligently target and activate specific muscle groups in a single tap. Symbio Incline Elliptical’s unique technology allows home exercisers to hit personalized goals and fine tune their workouts. Through innovative use of incline, as well as both forwards and backwards motion, the elliptical workout becomes more focused and effective than ever before.
MULTI-GRIP HANDLES
Beautifully-engineered, ergonomically effortless. These multi-grip handles bring incline and resistance controls to your fingertips, keeping your focus on the workout at all times.

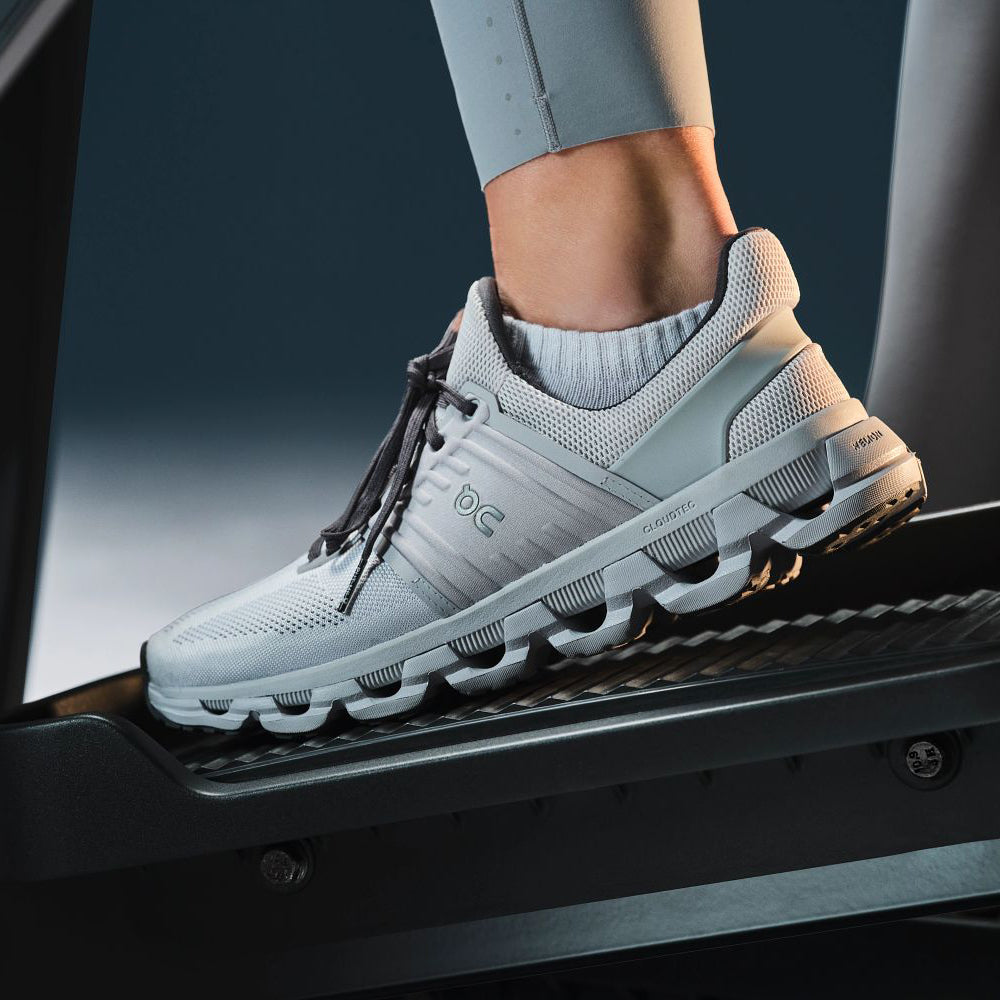

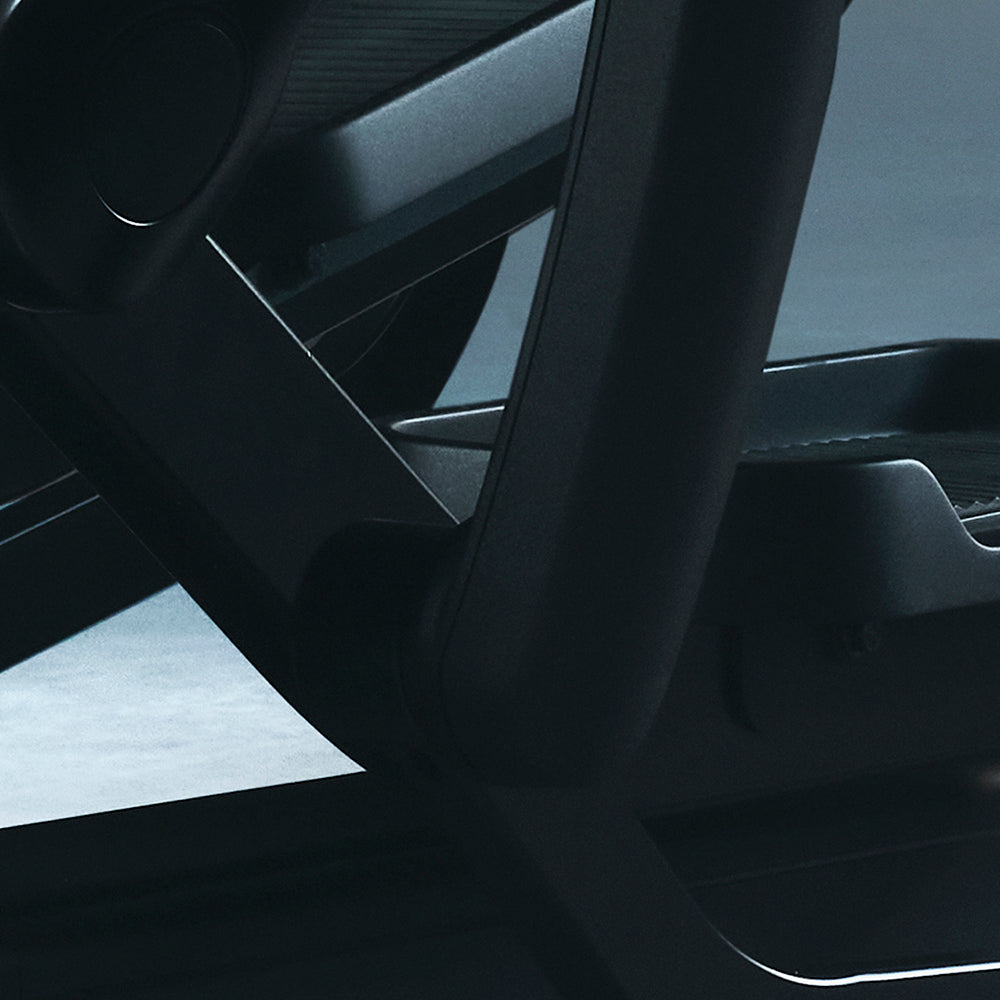

FLEX FORM™ PEDALS
Featuring a patented convex shape, proven to reduce occurrences of numb foot, FlexForm pedals create a seamless connection between exerciser and machine.
SIGNATURE ELLIPSE MOTION
The Symbio Incline Elliptical is the most biomechanically advanced elliptical available. Our patented incline ellipse mimics the body's natural running arc, taking performance and comfort to a new level. The culmination of decades of groundbreaking biomechanical research, training feels natural, smooth and empowering through 16 incline and 26 resistance levels.

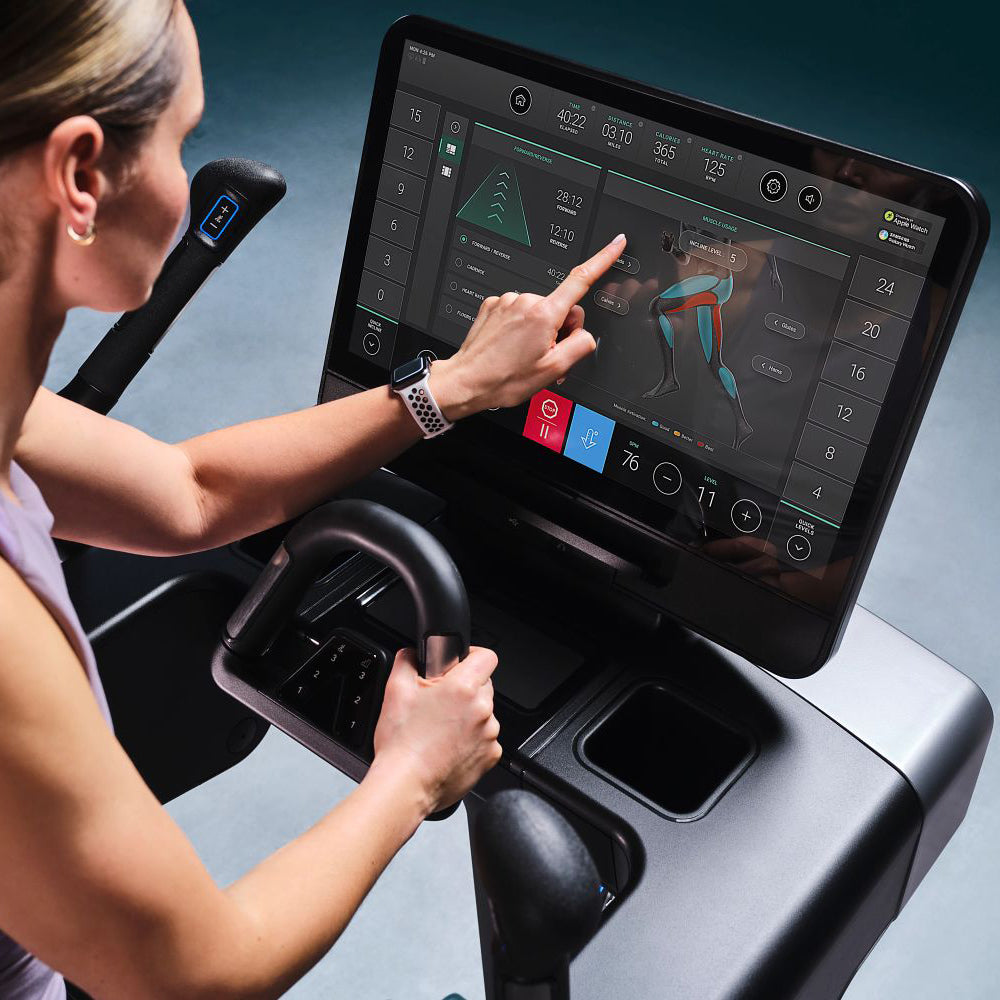

MUSCLE GROUP TARGETING
The Muscle Map™ is a new personalization technology inspired by our global research. It allows Symbio Incline Elliptical users to intelligently target and activate specific muscle groups by simply choosing a muscle group on screen.
The interactive muscle map uses incline and coaches the user on forward and reverse motion to achieve their goals.
Changing pedal direction (forward/reverse) enhances the muscle targeting options with an extra dimension, allowing for a fully targeted workout.
SIGNATURE ELLIPSE PATTERN
The Symbio Incline Elliptical is the most biomechanically advanced elliptical available. Our patented incline ellipse mimics the body's natural running arc, taking performance and comfort to a new level. The culmination of decades of groundbreaking biomechanical research, training feels natural, smooth and empowering through 16 incline and 26 resistance levels.
MUSLCE GROUP TARGETING
The Muscle Map™ is a new personalization technology inspired by our global research. It allows Symbio Incline Elliptical users to intelligently target and activate specific muscle groups by simply choosing a muscle group on screen.
The interactive muscle map uses incline and coaches the user on forward and reverse motion to achieve their goals.
Changing pedal direction (forward/reverse) enhances the muscle targeting options with an extra dimension, allowing for a fully targeted workout.

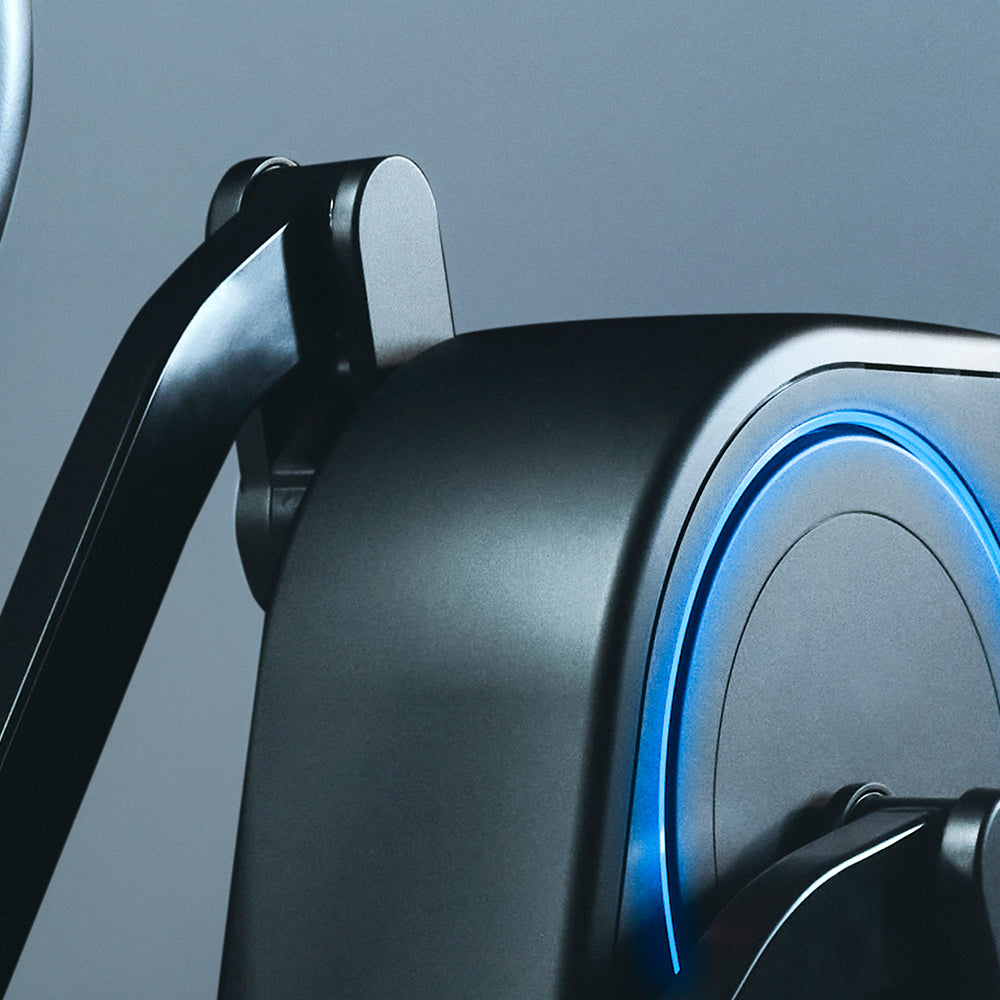

Personalize your symbio INCLINE ELLIPTICAL
16 interchangable color choices and three levels of brightness intensities will deliver a personalized aesthetic and ambience that fits the vibe of your home workouts.
*Stocked in Matte Charcoal. Contact our customer support team to customize in all other frame colors.
