Club Series+ Elliptical Cross-Trainer

Item #CSXDX

In Stock

Club Series + Elliptical Cross-Trainer

SHIPS IN 2-3 WEEKS

$7,549.00

Learn More

The Club Series+ Cross-Trainer is the home version of our durable and reliable commercial cardio series, offering advanced exercise feature like the oversized Flexform™ Pedals and multi-grip moving handles with integrated resistance control.

The premium SE3 HD console offers exciting and motivating instuctor led classes from Life Fitness On Demand.

Select a Console:

SE3 HD

Wireless connection, iOS® and Android™ compatible. Includes media apps like Netflix, Pandora, and Life Fitness™ On Demand. ...

About This Product

Bring the Club Experience Home

The Life Fitness Club Series is rooted in more than 20 years of reliability, innovation and exerciser insight from health clubs worldwide. The next-generation Club Series+ Cross-Trainer is now stronger and sleeker than ever - but retains the durability you’ve come to trust.

Total Body Exercise

The 20" (51 cm) stride creates a smooth and natural feel developed from years of research on the ellipse motion. Moving arms enhanced with our multi-grip design allow you to achieve a total-body, low-impact workout.

Versatile Handles

Integrated resistance controls on the moving handles allow you to change your workout with ease, and the multi-grip design allows for multiple hand positions, based on your preference. Plus, stationary handles provide exercise variety.

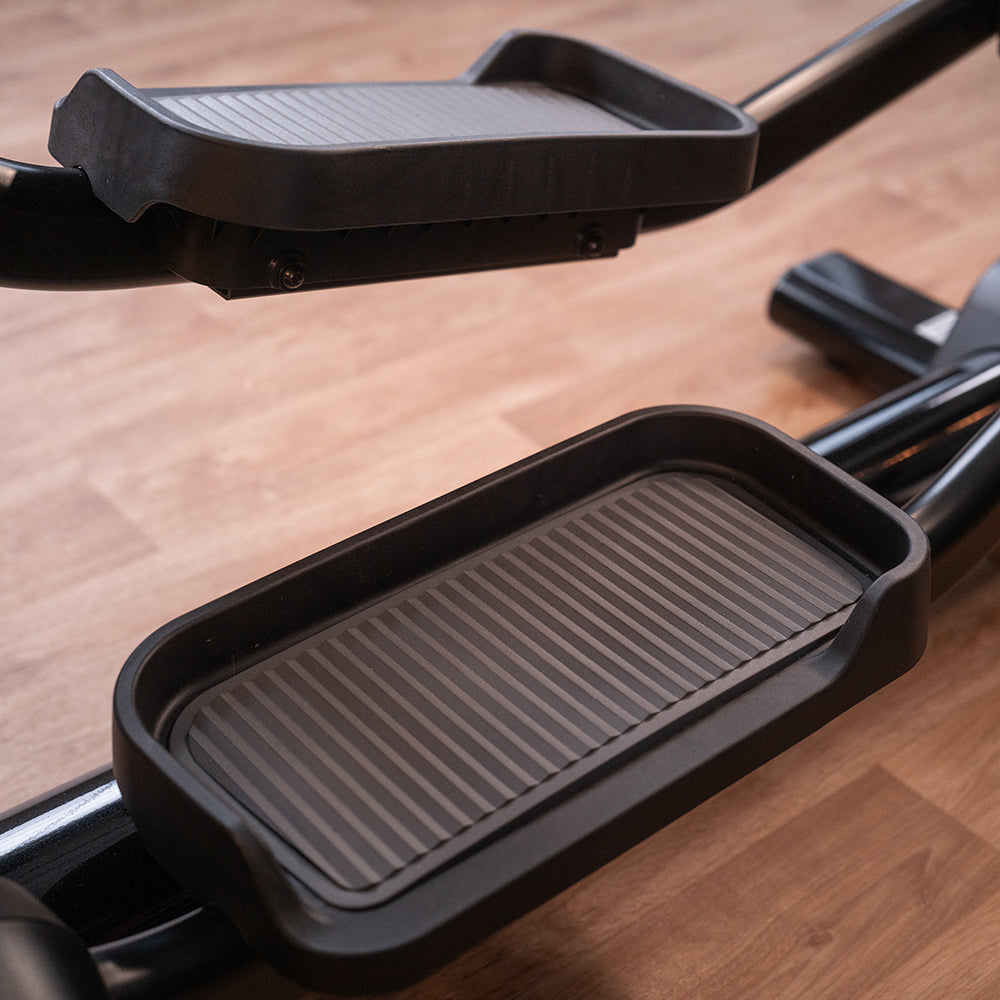

Oversized Flexform™ Pedals

Large, 15" (38 cm) pedals have a curved design to enhance comfort. The non-slip surface of the pedals is easy to clean.

Advanced Exercise Technology

The intuitive touchscreen console creates a connected experience. Your last workout is automatically saved, so you can replay it and strive to improve your performance. Challenge yourself with our auto-refreshed trending workouts. And, track your progress over time and push workout data to your favorite apps through Bluetooth® and NFC connection.

Specifications

Auto Start Yes
Cup Holders 1
Device Interactivity QR Code, Bluetooth connectivity (device and HR strap), NFC (Near Field Communication)
Dimensions (LxWxH) 86"x29"x64" (218x73x163 cm)
Dynamic length 87" (222 cm)
Frame Brushed stainless steel vents, rear wheels for mobility, adjustment levelers
Handles Multi-grip moving handles with remote resistance controls and stationary handles
Other Features Workout replay (repeat a previous workout), Trending workouts (Trainer designed, auto-refresh workouts), Workout performance history (View performance trends on last 10 workouts)
Power Requirements Plug-in (all major voltages)
Screen Size 7" (17.8 cm) LCD Touchscreen
Screen type LCD touch screen
Stride Length 20” (51cm) Ergonomic fixed stride
Unit Weight 301 lbs (137 kg)
Wireless connectivity Yes
Workouts Manual, Quick Start, Hill, Random, Time Goal, Distance Goal, Calories Goal, Heart Rate Goal, Rolling Hills, Speed Interval, Incline Interval
Integrated Accessory Tray Yes
Pedals Oversized 15” FlexForm Pedals
Resistance Levels 0-25
Heart Rate Monitoring Polar® Telemetry compatible (polar strap included), Lifepulse™ with DSP (Digital Signal Processing)
Max User Weight 400 lb (181 kg)

Console Display


MODEL	Discover SE3 HD Console	Discover ST Console	X Console
SCREEN
Display - Treadmills	21in 1080p Touch Screen	16in 1080p Touch Screen	7in Touch LCD
Navigation	Touch Screen	Touch Screen	Touch, tactile buttons
Languages	24	24	19
Display readouts	Speed, Incline, Heart rate (current, average, max), Pace, Elapsed time, Time remaining, Time in zone, Time of day, Distance, Distance climbed, Distance remaining, Calories, Calories / HR, Watts, METs	Speed, Incline, Heart rate (current, average, max), Pace, Elapsed time, Time remaining, Time in zone, Time of day, Distance, Distance climbed, Distance remaining, Calories, Calories / HR, Watts, METs	Speed, Distance, Distance climbed, Average pace, Average speed, Total cal burned, Average METs, Average watts, Average HR, Max HR, RPM
CONNECTIVITY
Internet connectivity	Wireless or Wired Connectivity	Wireless or Wired Connectivity	Wireless Connectivity
Bluetooth	Standard (headphone, HR straps)	Standard (headphone, HR straps)	Y (Login and HR straps only)
Login	QR code via WiFi or Bluetooth (when not connected) Proximity login via Bluetooth or NFC Manual input	QR code via WiFi or Bluetooth (when not connected) Proximity login via Bluetooth or NFC Manual input	QR code via WiFi or Bluetooth (when not connected) Proximity login via Bluetooth or NFC
RFID	Optional	Optional	Optional
NFC	Y	Y	Y
Gateway required	N	N	N
Equipment scan required at install	N	N	N
USB port	For software updated and device charging	For software updated and device charging	For software updated and device charging
Minimum download bandwidth requirement (to utilize all features)	Download: up to 8 units: 8 Mbps; 9+ units: 8 Mbps + 1 Mbps for each additional unit Upload: up to 20 units: 500 Kbps; 21+ units: 500 Kbps + 500 Kbps for each additional 20 units	Download: up to 8 units: 8 Mbps; 9+ units: 8 Mbps + 1 Mbps for each additional unit Upload: up to 20 units: 500 Kbps; 21+ units: 500 Kbps + 500 Kbps for each additional 20 units	Download: up to 8 units: 8 Mbps; 9+ units: 8 Mbps + 1 Mbps for each additional unit Upload: up to 20 units: 500 Kbps; 21+ units: 500 Kbps + 500 Kbps for each additional 20 units
Life Fitness On Demand Download Requirements	Download: up to 8 units: 20 Mbps + additional 2.5 Mbps for each additional unit	-	-
Telemetry HR	Compatible with Polar and Bluetooth straps	Compatible with Polar and Bluetooth straps	Compatible with Polar and Bluetooth straps
C-SAFE	Y-external	Y-external	N
WEARABLE TECHNOLOGY
Apple Watch® GymKit Compatible	Y	N	N
Samsung Galaxy Watch® Compatible	Y	N	N
WORKOUTS
Number of workouts	12-15 + Quick start	12-15 + Quick start	21+ Quick start Up to 30 total workouts possible
Workouts	Goal based: Time, distance, climb, interval, aerobics, watts, METs, starter interval, reverse, 2 speed interval, 3 speed interval (4 terrains per) Heart rate based: Moderate, vigorous, fixed time, variable time Fitness tests: LF fitness test, U.S. Navy PRT, U.S. Army, U.S. Marines, U.S. Air Force, WFI Submax protocol, physical efficiency battery, FAMS, CPAT	Goal based: Time, distance, climb, interval, aerobics, watts, METs, starter interval, reverse, 2 speed interval, 3 speed interval (4 terrains per) Heart rate based: Moderate, vigorous, fixed time, variable time Fitness tests: LF fitness test, U.S. Navy PRT, U.S. Army, U.S. Marines, U.S. Air Force, WFI Submax protocol, physical efficiency battery, FAMS, CPAT	Time, distance, calorie, heart rate, random, hill, manual, rolling hills, speed interval, WFI submax protocol, Life Fitness Fit Test, resistance, interval, reverse, METs, watts
Speed interval workout	Y	Y	Y
Fit tests	Y	N	Y
Custom facility workouts	Y	N	N
Custom exerciser workouts (via LFconnect.com exerciser app)	Y	Y	N
ENTERTAINMENT
Integrated TV	Y (ATSC, QAM, Pro:Idiom, NTSC, DVBT-2, PAL/SECAM, ISDB-T, Open IPTV, HDMI connection)	Y (ATSC, QAM, Pro:Idiom, NTSC, DVBT-2, PAL/SECAM, ISDB-T, Open IPTV, HDMI connection)	N
Attachable TV	N	N	Optional (ATSC, QAM, Pro:Idiom, NTSC, DVBT-2/PAL/SECAM, ISDB-T)
MYE	N	N	Optional embedded
TV controls	On touch screen channel list, on touch screen keypad and volume controls	On touch screen channel list, on touch screen keypad and volume controls	On touch screen keypad, on entertainment rack channel up/down, volume up/down
Web browsing	Y	N	N
Virtual courses	Y	N	N
On demand content	Y- includes all access to Life Fitness On Demand instructor-led classes, with videos streamed through an internet connection	N	N
ON CONSOLE APPS
Netflix	Y	N	N
Pandora	Y	N	N
ESPN	Y	N	N
BBC News	Y	N	N
Newsy	Y	N	N
Flipboard	Y	N	N
YoutTube	Y	N	N
The Economist	Y	N	N
Sudoku	Y	N	N
Chess	Y	N	N
Solitaire	Y	N	N
